Name: Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weegmodule SWC615-A SS 20t
Availability: InStock

Thuis Producten

Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor

Productdetails:

Plaats van herkomst:	China
Merknaam:	Mettler Toledo
Modelnummer:	Weegmodule SWC615-A SS 20t

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 SET
Prijs:	Onderhandelbaar
Verpakking Details:	Carondoos
Levertijd:	10-30 dagen
Levering vermogen:	2000 Reeks per maand

Contact

Gedetailleerde productomschrijving

Producten:	Mettler Toledo ladingcel	Maximale capaciteit:	50.000 kg (110.000 lb)
Materiaal:	Roestvrij staal V2A (AISI 304)	metrologie:	OIML C3, NTEP IIIL 10,000
Verzorgingscellen:	POWERCELL PDX	Nauwkeurigheid:	Inputcapaciteit (Ciss) (Max) @ Vds
Beschermingscategorie:	IP68/69k	Omgeving / Materiaal:	Wasbaar / roestvrij staal
Gevaarlijke goedkeuring:	ATEX, FM	Criticaliteit:	Conditiebewaking
Markeren:	Stainless steel weigh module 20t , Industrial load cell sensor , Mettler Toledo load cell with warranty

Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor

Product Overview

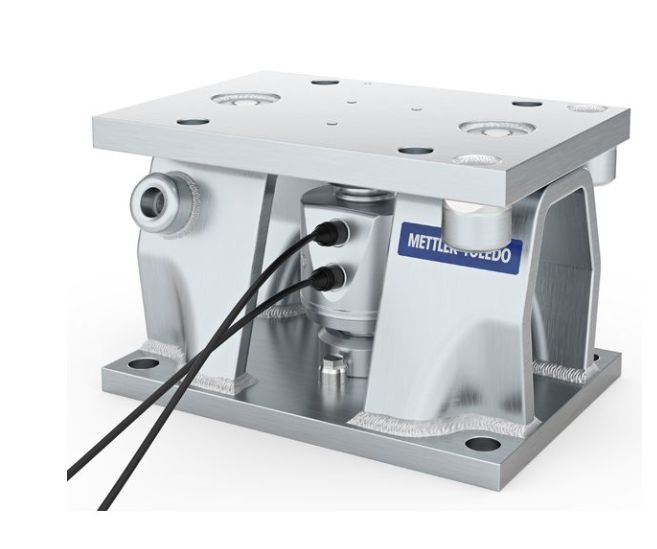

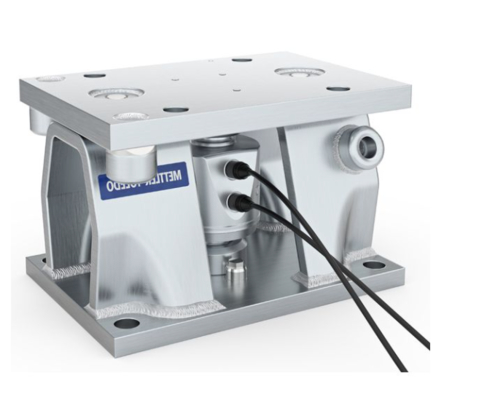

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Design

Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high accuracy, fully approved stainless hermetic load cell for all applications.

Enhanced Safety

Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals, and IP68 load cells for maximum reliability.

Condition Monitoring

Monitor individual load cells for overload, temperature, zero drift, and other parameters to prevent system shutdowns or measurement errors.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
