Name: 1.1t SWB605 Carbon Steel Weigh Module with C3 Precision EN1090 Approved Design
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Gewichtsmodule SWB505 SS 10 kg
Availability: InStock

Thuis Producten

1.1t SWB605 Carbon Steel Weigh Module with C3 Precision EN1090 Approved Design

Productdetails:

Plaats van herkomst:	China
Merknaam:	Mettler Toledo
Modelnummer:	Gewichtsmodule SWB505 SS 10 kg

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 SET
Prijs:	Onderhandelbaar
Verpakking Details:	Kartonnen doos
Levertijd:	10-30 dagen
Levering vermogen:	2000 Reeks per maand

Contact

Gedetailleerde productomschrijving

Producten:	Mettler Toledo ladingcel	Maximale capaciteit:	2.500 lb (1.100 kg)
materiaal:	Zink geplateerd staal	metrologie:	OIML C3, NTEP III 5M
Nauwkeurigheid:	standaard	Beschermingscategorie:	IP68/69k
Omgeving / Materiaal:	Normaal / Koolstofstaal	Gevaarlijke goedkeuring:	ATEX Cat. 3GD FM Division 2
Criticaliteit:	Conditiebewaking
Markeren:	1.1t carbon steel weigh module , SWB605 precision weigh module , EN1090 approved load cell

1.1t SWB605 Carbon Steel Weigh Module with C3 Precision EN1090 Approved Design

Economic System Integration

Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.

Product Description

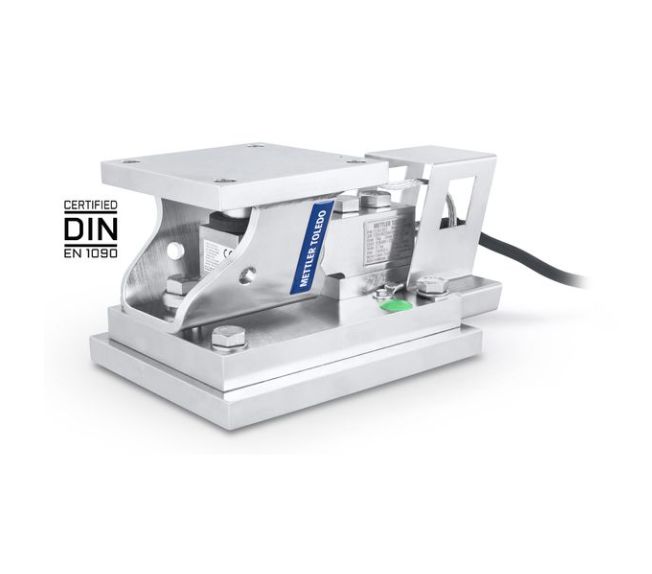

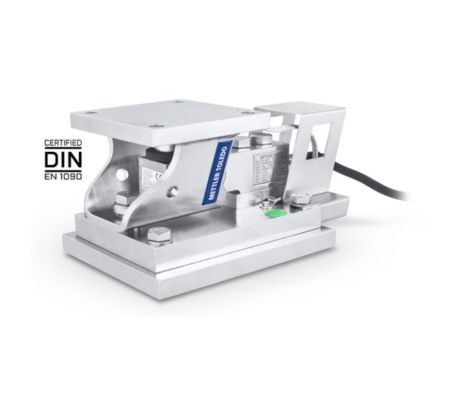

A compression weigh module designed so that its top plate and base plate compress when weight is applied. Can be attached directly to ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing.

Key Features

Static & Dynamic Weighing: Highest accuracy for both application types with self-aligning rocker pin
Safety & Protection: 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell
Easy Installation: Pre-aligned for installation with minimal lift required for load cell removal

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	2,500 lb (1,100 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP III 5M
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX Cat. 3GD FM Division 2
Criticality	Condition monitoring
