Name: 75kg Load Cell MT1041 with 2m Cable – Precision Weight Sensor for Industrial Use
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Load Cell MT1041-75kg 2m
Availability: InStock

Thuis Producten

75kg Load Cell MT1041 with 2m Cable – Precision Weight Sensor for Industrial Use

Productdetails:

Plaats van herkomst:	China
Merknaam:	Mettler Toledo
Modelnummer:	Load Cell MT1041-75kg 2m

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	Onderhandelbaar
Verpakking Details:	Kartonnen doos
Levertijd:	10-30 dagen
Levering vermogen:	2000 sets per maand

Contact

Gedetailleerde productomschrijving

Product:	Mettler Toledo Load Cell	Maximale capaciteit:	75 kg
Materiaal:	Aluminium, gepassiveerd	Metrologie:	NTEP III 5.000d OIML C3
Accuracy:	Standaard	Beschermingsgraad:	IP67
Platformgrootte (LxB):	400 mm x 400 mm	Connectiviteit:	Analoog
Kabel:	6.6 ft (2 m)
Markeren:	75kg load cell with 2m cable , precision weight sensor for industrial use , Mettler Toledo load cell with warranty

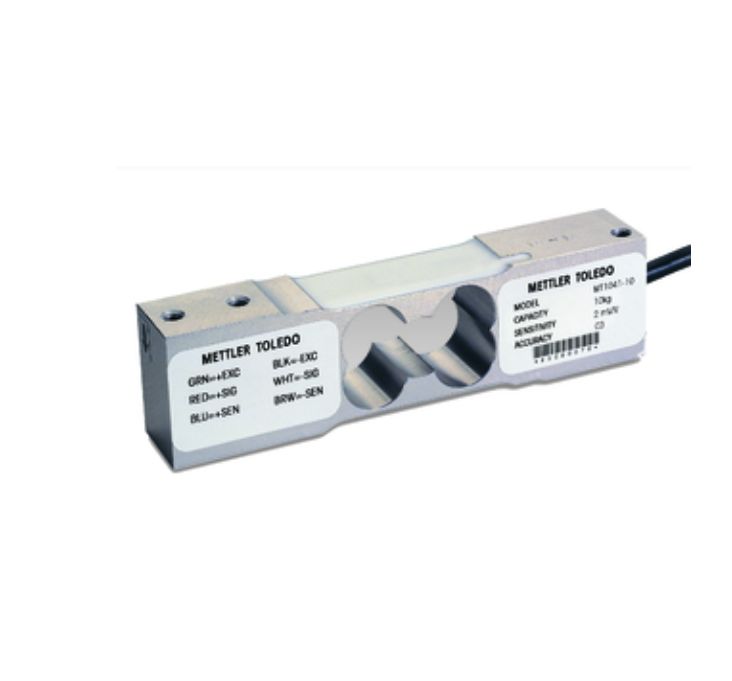

75kg Load Cell MT1041 with 2m Cable – Precision Weight Sensor for Industrial Use

Key Features

High-performance single point load cell with off-center compensation
Aluminum construction with passivated finish for durability
IP67 protection rating for harsh environments
Includes 2m (6.6ft) PVC cable for connectivity
ATEX Zone 1/21/2/22 approvals for hazardous areas
Metrology approvals: NTEP III 5,000d and OIML C3

Product Description

The MT1041 compression weigh module is designed for industrial weighing applications where its top plate and base plate are compressed when weight is applied. This robust load cell can be directly attached to the ground, piers, or structural beams, making it ideal for platform scales, tank weighing, hoppers, and silos.

Technical Specifications

Maximum Capacity	167 lb (75 kg)
Material	Aluminum, passivated
Material Number	71201837
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	6.6 ft (2 m) PVC
Accuracy	Standard
Metrology Approvals	NTEP III 5,000d, OIML C3

Industrial Applications

This precision load cell is specifically designed for mid-size platforms in industrial environments. Its robust construction and metrology approvals make it suitable for:

Truck and railroad track scales
Tank, hopper, and silo weighing systems
Industrial process control applications
Hazardous area installations (ATEX certified)
