Name: Automated Weighing Inspection Systems with Technology and Implementation
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Automated Weighing Inspection Systems with Technology and Implementation
Availability: InStock

Thuis Producten Automatische controleweger

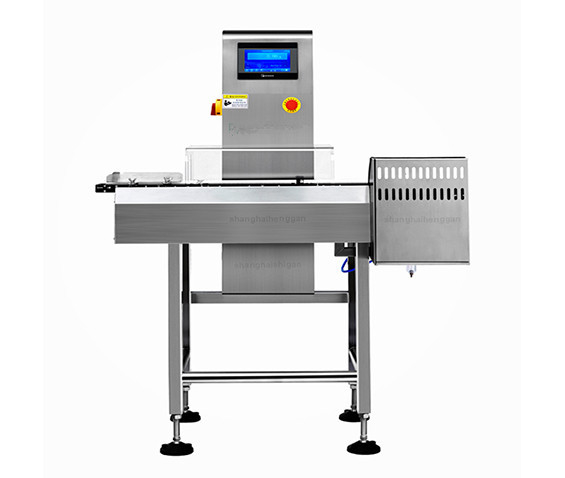

Automated Weighing Inspection Systems with Technology and Implementation

Productdetails:

Place of Origin:	CHINA
Model Number:	Automated Weighing Inspection Systems with Technology and Implementation

Betalen & Verzenden Algemene voorwaarden:

Minimum Order Quantity:	1 set
Prijs:	Onderhandelbaar
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact

Gedetailleerde productomschrijving

Product:	Geautomatiseerde weeginspectiesystemen met technologie en implementatie	Oplossing:	± 0,01 g tot ± 1 kg (afhankelijk van de laadcel)
Herhaalbaarheid:	± 0,02% van de volledige schaal	Weegsnelheid:	100–600 items/minuut (hangt af van transportsnelheid)
Afwijzingssnelheid:	<0,5 sec reactietijd	Minimumgewicht:	0,1 g (voor precisietoepassingen)
Maximaal gewicht:	Tot 150 kg (industriële schalen)	Riembreedte:	100 mm - 1000 mm (verstelbaar)
Materiaal:	PU, PVC, roestvrij staal (voedselkwaliteit/hygiënisch)	Bedrijfstemperatuur:	-10 ° C tot 50 ° C (modellen van industriële kwaliteit)
IP-beoordeling:	IP65 (stof / waterbestendig) / IP69K (hogedrukspoeling)	Communicatieprotocollen:	RS-232, Ethernet/IP, Modbus TCP, OPC UA
Softwarecompatibiliteit:	ERP/MES (SAP, ORACLE), SCADA, LABVIEW	Type:	Pneumatische arm, luchtstraal, diverteringspoort
Afwijzing nauwkeurigheid:	99,9% (met visie-ondersteunde systemen)	Spanning:	110V - 480V AC / 24V DC (voor sensoren)
Stroomverbruik:	0,5 - 5 kW (afhankelijk van de systeemgrootte)	Metrologie:	OIML R60, NTEP, EC 60051 (Legal-for-Trade)
Veiligheid:	CE, UL, ISO 9001, GMP, HACCP	defectdetectie:	AI-gebaseerde visie + gewichtscorrelatie (ontbrekende items, misvormingen)
Voorspellend onderhoud:	IoT-compatibele slijtage-monitoring (riem, laadcellen)
Markeren:	automated weighing inspection systems , automatic checking weigher with technology , weighing systems implementation

Automated Weighing Inspection Systems with Technology and Implementation

Advanced industrial solutions designed to ensure precise weight measurement, quality control, and compliance with regulatory standards in manufacturing, packaging, and logistics. These systems integrate high-precision sensors, automation software, and data analytics to optimize efficiency, reduce waste, and enhance product consistency.

Key Features

High-Precision Load Cells & Sensors

Utilize strain gauge or electromagnetic force restoration (EFR) technology
Measure weights from milligrams to tons with ±0.01% accuracy
Resistant to environmental factors (temperature, vibration)

Automated Conveyor & Handling Systems

Integrated conveyors (belt, roller, or vibratory) transport products to weighing stations
Robotic arms or pick-and-place systems handle irregularly shaped items

Vision & Barcode Scanning Integration

Combines weight data with visual inspection (AI-based defect detection)
Barcode/RFID scanning for traceability and batch tracking

Real-Time Data Processing & AI Analytics

Edge computing for instant weight verification
Machine learning algorithms detect anomalies (under/overfilling, missing components)

Rejection & Sorting Mechanisms

Pneumatic pushers, diverter arms, or air jets remove non-compliant products
Automated sorting based on weight thresholds

Industrial IoT & Cloud Connectivity

Remote monitoring via SCADA/MES systems
Cloud-based dashboards for historical data analysis and predictive maintenance

Industry Applications

Food & Beverage

Ensures compliance with net content regulations (e.g., FDA, EU FIC). Detects underfilled packages, missing ingredients, or foreign objects.

Pharmaceuticals

Validates tablet/capsule counts in blister packs. Ensures compliance with Good Manufacturing Practices (GMP).

Logistics & E-commerce

Verifies parcel weights for shipping cost accuracy. Detects missing items in multi-component packages.

Chemicals & Manufacturing

Ensures precise batch mixing ratios. Prevents overfilling in hazardous material handling.

Key Benefits

• Accuracy & Consistency: Eliminates human error in weight measurement

• Regulatory Compliance: Meets standards like ISO 9001, HACCP, USP

• Cost Savings: Reduces giveaway (overfilling) and waste (underfilling)

• Speed & Efficiency: Processes hundreds of items per minute

• Traceability: Full audit trail for quality assurance

Technical Specifications

Parameter	Specifications
Resolution	±0.01g to ±1kg (depending on load cell)
Repeatability	±0.02% of full scale
Weighing Speed	100–600 items/minute (depends on conveyor speed)
Rejection Speed	<0.5 sec response time
Minimum Weight	0.1g (for precision applications)
Maximum Weight	Up to 150kg (industrial scales)
Belt Width	100mm–1000mm (adjustable)
Material	PU, PVC, Stainless Steel (food-grade/hygienic)
Operating Temperature	-10°C to 50°C (industrial-grade models)
IP Rating	IP65 (dust/water-resistant) / IP69K (high-pressure washdown)
Communication Protocols	RS-232, Ethernet/IP, Modbus TCP, OPC UA
Software Compatibility	ERP/MES (SAP, Oracle), SCADA, LabVIEW
Type	Pneumatic arm, air jet, diverter gate
Rejection Accuracy	99.9% (with vision-assisted systems)
Voltage	110V–480V AC / 24V DC (for sensors)
Power Consumption	0.5–5kW (depending on system size)
Metrology	OIML R60, NTEP, EC 60051 (legal-for-trade)
Safety	CE, UL, ISO 9001, GMP, HACCP
