Name: C35 AdvancedLine Checkweigher for Ultimate Production Efficiency
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: C35 Geavanceerde lijn controlewagger
Availability: InStock

Thuis Producten Automatische controleweger

C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

Productdetails:

Plaats van herkomst:	China
Merknaam:	Mettler Toledo
Modelnummer:	C35 Geavanceerde lijn controlewagger

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	Onderhandelbaar
Verpakking Details:	Kartonnen doos
Levertijd:	10-30 dagen
Levering vermogen:	2000 sets per maand

Contact

Gedetailleerde productomschrijving

Product:	C35 Geavanceerde lijn controlewagger	Inspectieaanvraag:	Volledigheidscontrole gewichtscontrole
Industrie:	Chemische, voedingsmiddelen en dranken Metalen, kunststoffen en elektronische componenten	Weegnauwkeurigheid:	vanaf ±0,01 g
Max productgewicht:	10 kg	Max lijnsnelheid:	180 m/min
Max doorvoer:	800 PPM	IP -beoordeling:	IP54, IP65
Connectiviteit:	Ethernet TCP/IP Veld-bus OPC UA	Productkarakteristiek:	Diepgevroren, Droog, Middelgrote-Grote Verpakkingen, Open, Ronde Container, Klein Individueel Verpak
Industriële segment:	Automobielindustrie, bakkerijen en snoepwaren, bier, wijn en andere alcoholische dranken, cosmetica,	Verpakkingstype:	Zakken
Markeren:	C35 Checkweigher for production efficiency , Mettler Toledo Checkweigher , AdvancedLine Checkweigher load cell

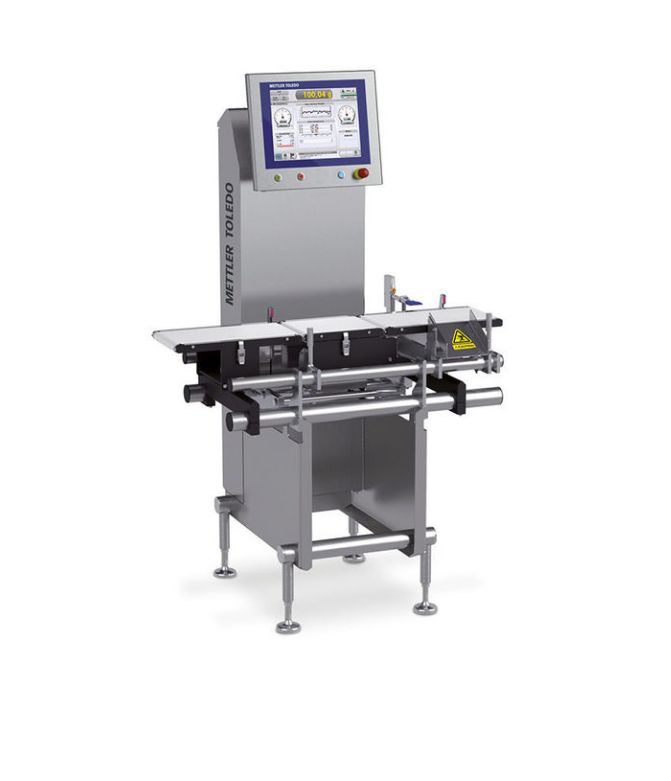

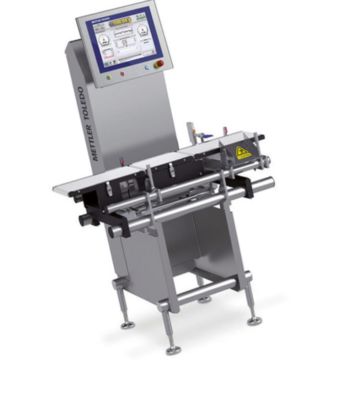

C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

The Mettler Toledo C35 AdvancedLine Checkweigher is a top-of-the-line system designed for manufacturers who require the highest levels of performance and flexibility. It is engineered to deliver unmatched speed and precision for the most demanding production environments.

High Performance Checkweighing

Advanced FlashCell™ EMFR technology delivers maximum accuracy at throughputs up to 800ppm. The modular design offers customization to effectively handle any package type.

Key Features

Performance Excellence: Delivers flexibility to support all product sizes and weighing challenges with maximum precision at fast throughputs
Product Handling Excellence: Achieve maximum process stability and equipment efficiency through transition, transport, stability and sorting options for any packaging format
Software and Control Excellence: Exceptional process optimization with a wide range of standard and customizable, sophisticated software enhancements and control options

Technical Specifications

Attribute	Value
Model No	2400350000
IP Rating	IP65, IP54
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP Fieldbus OPC UA
Inspection Solution	Checkweighing
Max Product Width	400 mm
Max Weighing Zones	7
Weighing Technology	EMFR
HMI	15" Touchscreen

Applications

Ideal for industries including: Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Automotive, Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, and Dairy.

Package Compatibility

Handles various packaging types including: Bags, Bottles, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Metal Cans, Trays, and VFFS.

label:

Contactpersoon: Mrs. Shirley

Tel.: +86-15851932889

Fax: 86-519-68781609

Andere Producten

Checkweigher Combinations with Vision Systems

Product: Checkweigere combinaties met visiesystemen

Camera's: 2-8x industriële CMO's (5-20MP)

Optiek: Telecentrische lenzen (0,1-0,5x vergroting)

verlichting: Multi-hoek LED-arrays (RGB/W/UV/IR)

Industrial Weight Checkers Ensuring Product Compliance & Accuracy

Product: Industriële gewichtscontrole

Riembreedte: 150-800 mm (verstelbaar)

Riemmateriaal: PU, PVC of metaal detecteerbaar

Riemsnelheid: 5-120 m/min (servo-gecontroleerd)

Checkweigher Integration in Packaging Lines

Product: Checkweiger -integratie in verpakkingslijnen

Transportbreedte: 200-1200 mm

Beltsnelheidsynchronisatie: 5-120 m/min

Productafstand: Min. 50 mm tussen items

Pharmaceutical-Grade Automated Checkweighers for cGMP Compliance

Product: Automated checkweigers van farmaceutische kwaliteit

Weegbereik: 0,1 mg - 500 g (aanpasbaar tot 5 kg voor bulk)

Leesbaarheid: 0,1 mg (micro-balans modellen), 1 mg (standaard)

Nauwkeurigheid: ± 0,1 mg tot ± 5 mg (afhankelijk van het model)

Precision Checkweighers for Automotive Component Manufacturing

Product: Precisie checkweigers voor productie van auto -componenten

Weegbereik: 0,01 g - 20 kg (modulaire configuraties beschikbaar)

Leesbaarheid: 0,001 g (micro-modellen) tot 0,1 g (zware duty)

Nauwkeurigheid: ± 0,005 g (0-100 g) tot ± 0,2 g (5-20 kg)
