C35 WD Inspection System Checkweigher for Wet Harsh Environments

C35 WD Inspection System Checkweigher for Wet Harsh Environments

Productdetails:
Plaats van herkomst: China
Merknaam: Mettler Toledo
Modelnummer: C35 WD Inspectiesysteem
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 set
Prijs: Onderhandelbaar
Verpakking Details: Kartonnen doos
Levertijd: 10-30 dagen
Levering vermogen: 2000 sets per maand
Contact
Gedetailleerde productomschrijving
Product: C35 WD Inspectiesysteem Productstroom: Transportband
Inspectieaanvraag: Gewichtscontrole Industrie: Chemische industrie, voedingsmiddelen en dranken, farmaceutische industrie en biotechnologie
Weegnauwkeurigheid: vanaf ±0,1 g Max productgewicht: 7 Kg
Max lijnsnelheid: 90 m/min Max doorvoer: 250 ppm
Connectiviteit: Ethernet TCP/IP Veld-bus OPC UA Productkarakteristiek: Medium-grote pakketten, open, ronde container, kleine medium pakketten, nat
Industriële segment: Bier, wijn en andere alcoholhoudende dranken zuivel, vlees, pluimvee en zeevruchten, oliën en vetten Verpakkingstype: Fles, Bundels, Glas, Dienbladen, Onverpakt
Markeren:

C35 WD checkweigher for harsh environments

,

Mettler Toledo inspection system

,

wet environment checkweigher inspection system

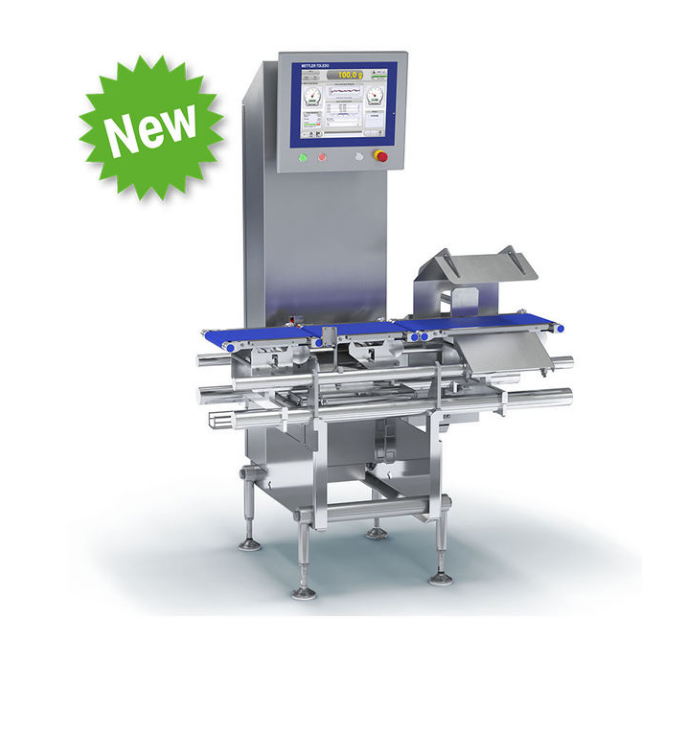

C35 WD Inspection System Checkweigher for Wet Harsh Environments
Product Overview

The Mettler Toledo C35 WD Inspection System is a high-performance, combination quality control solution specifically engineered to thrive in the most demanding washdown environments. By integrating an advanced checkweigher and a highly sensitive metal detector into a single compact system, the C35 WD delivers comprehensive product inspection and protection in wet and harsh production areas.

Key Features
  • Precision and Versatility: Built for harsh environments to withstand high-pressure cleaning with very high precision at fast speeds
  • Highest Accuracy: MID-certified weighing precision helps comply with regulations and reduces product waste
  • Hygienic Design: Easy access for cleaning with sloped surfaces to prevent liquid retention
  • Resilient Construction: Entire IP69-rated system withstands high-pressure cleaning and caustic detergents
Technical Specifications
Attribute Value
Product Flow Conveyor
Weighing Accuracy from ±0.1 g
Max Product Weight 7 Kg
Max Line Speed 90 m/min
Max Throughput 250 ppm
IP Rating IP69
Max Product Width 400 mm
Weighing Technology EMFR
HMI 15" Touchscreen
Industry Applications

Chemical, Food & Beverage, Pharma & Biotech, including:

  • Beer, Wine and Other Alcoholic Beverages
  • Dairy, Meat & Poultry & Seafood
  • Oils and Fats, Pet Food and Animal Feed
  • Ready Meals, Snack Foods
  • Water and other Non-Alcoholic Beverages
Compatible Packaging Types

Bottle, Bundles, Glass, Trays, Unpackaged

C35 WD Inspection System Checkweigher for Wet Harsh Environments 0
