Name: C21 StandardLine Checkweigher System for Quality Control
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: C21 StandardLine Checkweigher
Availability: InStock

Thuis Producten Automatische controleweger

C21 StandardLine Checkweigher System for Quality Control

Productdetails:

Place of Origin:	CHINA
Merknaam:	Mettler Toledo
Model Number:	C21 StandardLine Checkweigher

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	Onderhandelbaar
Packaging Details:	Caron box
Levertijd:	10-30 dagen
Levering vermogen:	2000 Set per maand

Contact

Gedetailleerde productomschrijving

Product:	C21 Standardline Checkweiger	Verpakkingstype:	Zakken
Inspectieaanvraag:	Volledigheidscontrole gewichtscontrole	Productkarakteristiek:	Diepgevroren, droge, zware verpakkingen, hoge rigide containers
Industrie:	Chemische voedingsmiddelen & dranken Metaal, kunststof en elektronische componenten Farmaceutische &	Weegnauwkeurigheid:	vanaf ±5 g
Industriële segment:	Landbouw en bulkvoedsel Automotive Bakery en zoetwarenbier, wijn en andere alcoholische dranken bulk	Max productgewicht:	80 kg
Max lijnsnelheid:	150 M/Min	Max doorvoer:	100 ppm
Markeren:	C16 PlusLine checkweigher for dry environments , Mettler Toledo checkweigher with load cell , NSMTO checkweigher for industrial weighing

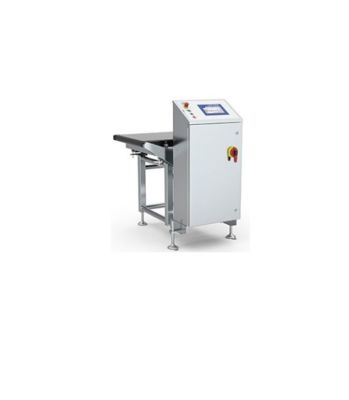

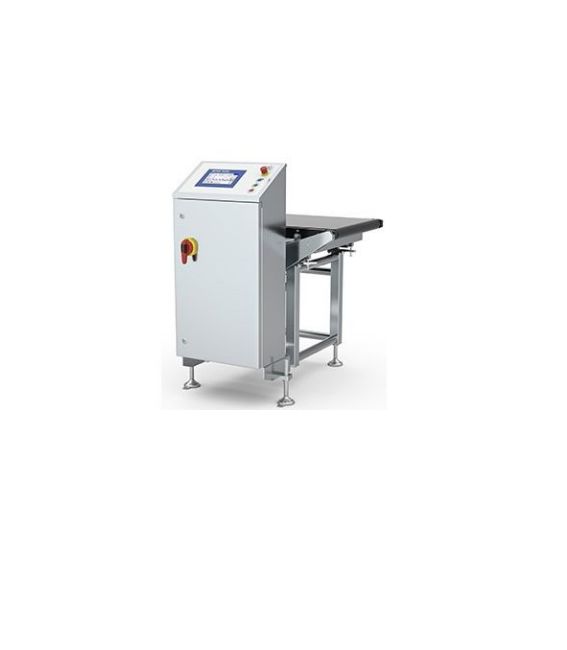

C21 StandardLine Checkweigher System for Quality Control

The C21 StandardLine Checkweigher is a robust and reliable system designed for cost-effective, end-of-line completeness checks for heavy products. It is a highly accurate and dependable solution, built to be easily integrated into any production line.

Key Features

Reliable completeness checks for products up to 80 kg
Easy integration into any production line
Intuitive operation with minimal training requirements
Clear text machine messages for easy understanding
Multiple communication options including Fieldbus and OPC technology
Robust design with proven METTLER TOLEDO strain gauge weighing technology

Technical Specifications

Attribute	Value
Product	C21 StandardLine Checkweigher
Packaging Type	Bags, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Trays
Inspection Application	Completeness Check Weight Control
Product Characteristic	Deep Frozen, Dry, Heavy Weight Packages, Tall Rigid Containers
Industry	Chemical Food & Beverage Metal, Plastic and Electronics Components Pharma & Biotech Transport and Logistics
Weighing Accuracy	from ±5 g
Industry Segment	Agriculture and Bulk Foods Automotive Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Bulk Chemicals
Max Product Weight	80 kg
Max Line Speed	150 m/min
Max Throughput	100 ppm
Material No	2400210000
IP Rating	IP54, IP65
Compatible Software	ProdX
Connectivity	Fieldbus, OPC UA
Inspection Solution	Checkweighing
Max Product Width	1,100 mm
Max Weighing Zones	3
Weighing Technology	Strain Gauge
HMI	7" Touchscreen
Product Flow	Conveyor

label:

Contactpersoon: Shirley

Tel.: +86-15851932889

Fax: 86-519-68781609
