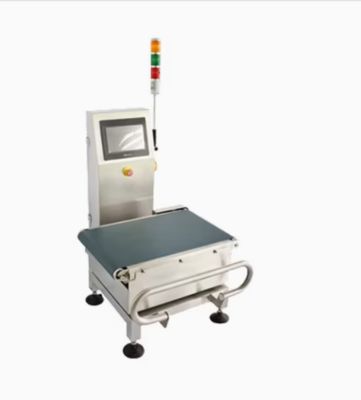

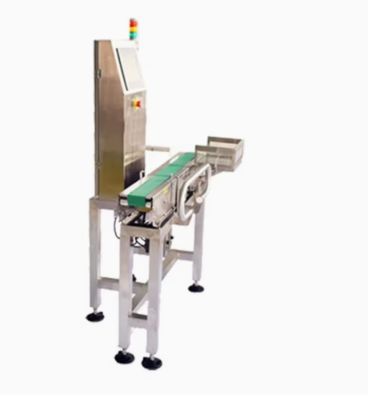

Name: Checkweigher Combinations with Vision Systems
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Checkweigher Combinations with Vision Systems
Availability: InStock

Thuis Producten Automatic Checkweigher

Checkweigher Combinations with Vision Systems

Productdetails:

Plaats van herkomst:	China
Model Number:	Checkweigher Combinations with Vision Systems

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	Onderhandelbaar
Packaging Details:	Caron box
Levertijd:	10-30 dagen
Levering vermogen:	2000 Set per maand

Contact

Gedetailleerde productomschrijving

Product:	Checkweigere combinaties met visiesystemen	Camera's:	2-8x industriële CMO's (5-20MP)
Optiek:	Telecentrische lenzen (0,1-0,5x vergroting)	verlichting:	Multi-hoek LED-arrays (RGB/W/UV/IR)
Framesnelheid:	Tot 300 fps (productafhankelijk)	Oplossing:	0,001 g
Dimensionale meting:	± 0,05 mm	Kleurverificatie:	150ppm
Oppervlaktefouten:	0,1 mm defecten	Labelverificatie:	300 ppm
Aanwezigheid/afwezigheid:	500 ppm	Capaciteit:	0,1G-25kg
Nauwkeurigheid:	± 0,05% FS	Snelheid:	Tot 600 ppm
Markeren:	Mettler Toledo checkweigher with X-ray , checkweigher inspection combination load cell , X-ray inspection checkweigher

Checkweigher Combinations with Vision Systems

Key Specifications

Attribute	Value
Cameras	2-8x industrial CMOS (5-20MP)
Optics	Telecentric lenses (0.1-0.5X magnification)
Lighting	Multi-angle LED arrays (RGB/W/UV/IR)
Frame Rate	Up to 300fps (product-dependent)
Resolution	0.001g
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
Capacity	0.1g-25kg
Accuracy	±0.05% FS
Speed	Up to 600ppm

System Overview

This advanced system combines high-precision dynamic weighing with multi-camera vision inspection for comprehensive quality control.

Machine Architecture

Modular Design: Integrated weighing and vision inspection system
Structural Components:
- Aluminum/stainless steel hybrid frame (Grade 304)
- Compact footprint: 1800(L) × 800(W) × 1400(H) mm
- IP65-rated enclosure (IP69K optional)
- Transparent safety guards with interlock switches

Material Flow Configuration

Infeed Section:
- Servo-driven belt conveyor (5-80 m/min)
- Product singulation system
- Barcode/RFID reader integration point
Inspection Zone:
- High-resolution vision tunnel
- Precision load cell weighing platform
- Multi-spectrum lighting array
Outfeed Section:
- Smart rejection system with 4-way sorting
- Verification sensors for quality tracking

Vision System Specifications

Parameter	Specification
Resolution	0.05mm/pixel at 50m/min
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
