Name: Checkweigher Innovations for IoT Connectivity and Industry 4.0 Integration
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Checkweigher Innovations for IoT Connectivity and Industry 4.0 Integration
Availability: InStock

Thuis Producten Automatic Checkweigher

Checkweigher Innovations for IoT Connectivity and Industry 4.0 Integration

Productdetails:

Place of Origin:	CHINA
Model Number:	Checkweigher Innovations for IoT Connectivity and Industry 4.0 Integration

Betalen & Verzenden Algemene voorwaarden:

Minimum Order Quantity:	1 set
Prijs:	Onderhandelbaar
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact

Gedetailleerde productomschrijving

Product:	Checkweigher Innovations for IoT Connectivity and Industry 4.0 Integration	Capacity Range:	0.1g - 50kg
Dynamic Accuracy:	±0.05% of reading at 400ppm*	Minimum Detectable Deviation:	0.3% of target
Wireless Protocols:	Wi-Fi 6/5G/BLE/RS-485	Cloud Integration:	AWS IoT Core/Azure IoT Hub/OPC UA
Data Throughput:	200MB/hour	Processor:	NVIDIA Jetson AGX Orin (32GB RAM)
Local Storage:	128GB SSD + 8GB buffer	Communication Standards:	OPC UA PubSub/MQTT Sparkplug/EtherNet/IP
API Support:	REST/WebSockets	Predictive Analytics:	LSTM neural networks
Digital Twin Interface:	NVIDIA Omniverse/Unity3D	Blockchain Logging:	Hyperledger Fabric support
Encryption:	TLS 1.3 + AES-256	Access Control:	ISO 27001-certified IAM
Weighing Speed:	50-800ppm (adjustable resolution)	Latency:	<20ms (edge processed)
Consumption:	1.8kW (with eco-mode)	Energy Recovery:	Regenerative conveyor braking
Conveyor Options:	Modular plastic/SS/PU	IP Rating:	IP66 (standard)/IP69K (option)
Pharma:	21 CFR Part 11/Annex 11	Food:	HACCP/IFS/BRCGS
General Industry:	ISO 9001/14001
Markeren:	IoT connected checkweigher , Industry 4.0 automatic checkweigher , smart checking weigher system

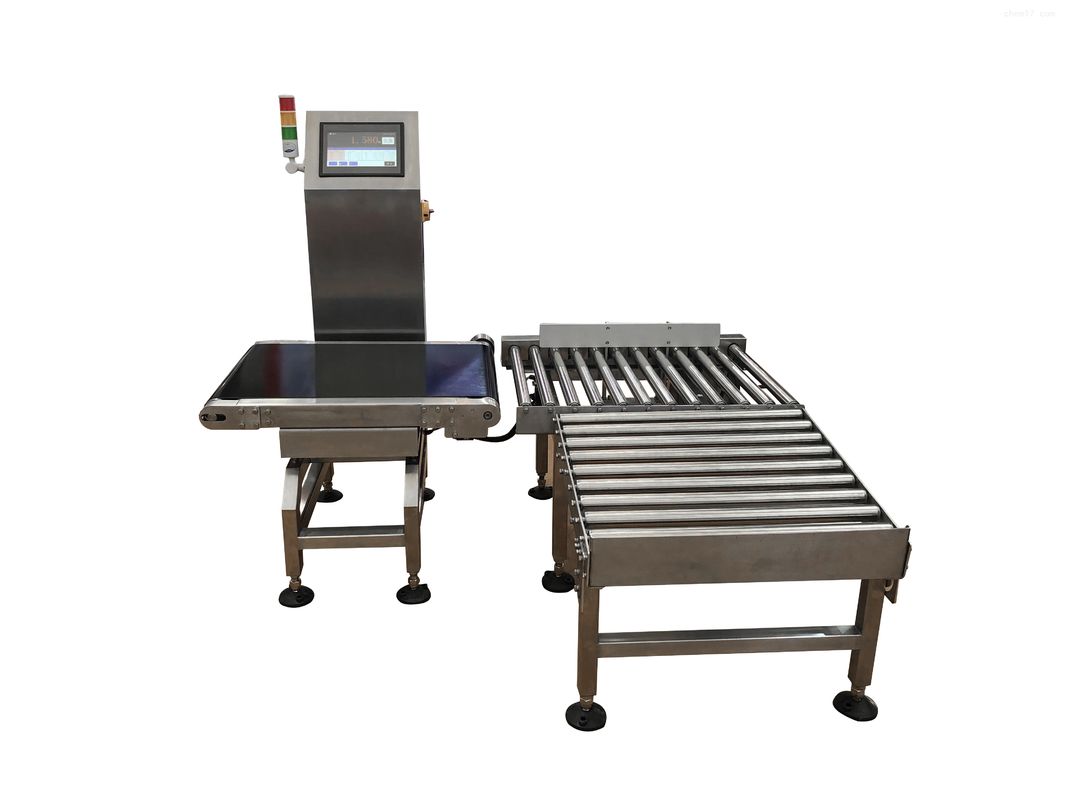

Checkweigher Innovations for IoT Connectivity and Industry 4.0 Integration

The latest generation of smart checkweighers has evolved beyond standalone weighing systems into fully connected Industry 4.0 solutions. By integrating IoT connectivity, cloud computing, and real-time data analytics, modern checkweighers now play a pivotal role in predictive quality control, smart factory automation, and supply chain optimization.

Key Benefits

Monitor production remotely via cloud dashboards
Predict equipment failures before they occur
Automatically adjust filling processes using AI-driven insights
Achieve end-to-end traceability with blockchain-enabled data logs

Industry 4.0 Implementation Framework

Phase 1: Smart Monitoring

Install IoT gateways for legacy checkweighers
Dashboards showing real-time OEE, giveaway %, defect maps

Phase 2: Predictive Quality

AI model training with historical weight data
Automated alerts for process deviations

Phase 3: Closed-Loop Automation

Direct PLC integration to adjust:
- Filler valves
- Auger speeds
- Conveyor rates

Industry-Specific Applications

Food Manufacturing

Smart recall prevention: Correlates weight data with batch/lot numbers
Dynamic recipe adjustment: Compensates for ingredient density variations

Pharmaceuticals

eBatch Records: Automated documentation for FDA audits
Vial inspection: AI detects missing stoppers via weight+vision fusion

Logistics

DIM weight optimization: Adjusts packaging to minimize shipping costs
Blockchain logistics: Tamper-proof weight certificates

Technical Specifications

Parameter	Specifications
Capacity Range	0.1g - 50kg
Dynamic Accuracy	±0.05% of reading at 400ppm*
Minimum Detectable Change	0.3% of target
Wireless Protocols	Wi-Fi 6/5G/BLE/RS-485
Cloud Integration	AWS IoT Core/Azure IoT Hub/OPC UA
Data Throughput	200MB/hour
Processor	NVIDIA Jetson AGX Orin (32GB RAM)
Local Storage	128GB SSD + 8GB buffer
Communication Standards	OPC UA PubSub/MQTT Sparkplug/EtherNet/IP
